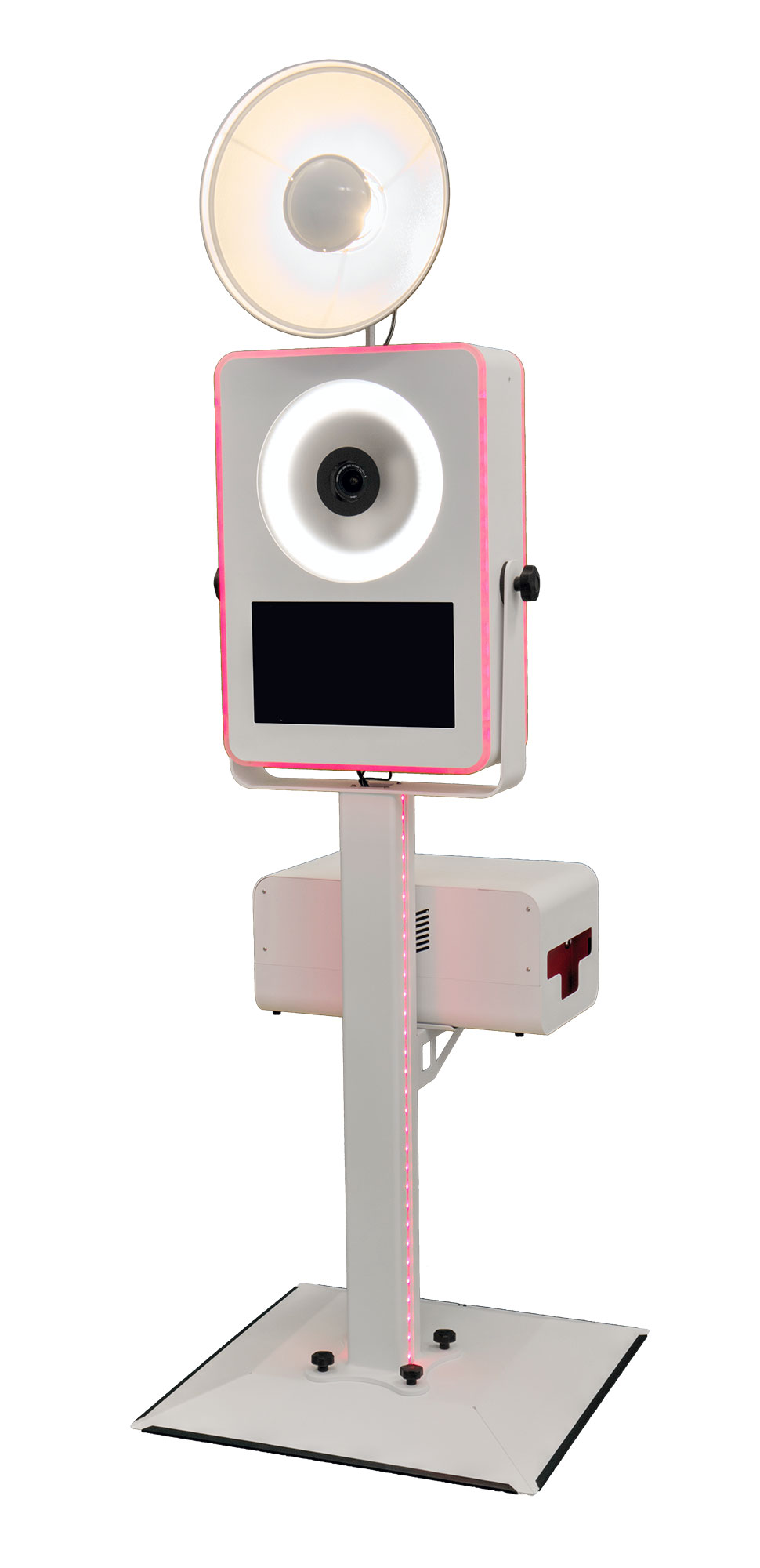

A compact and stylish photo booth with smooth tilt adjustment of the main unit.
Standard equipment:
- ring LED continuous light – brightness 4500lm with remote intensity adjustment,
- ASUS A41GAT All-in-One PC with 16" touchscreen,
- CANON EOS 2000D camera with 18-55mm lens, 8GB memory card, Canon AC adapter,
- Mitsubishi CP-D80DW dye-sublimation printer with consumables for 430 prints,
- photo booth software with interface and print template package,
- decorative RGB LED lighting – around the body and stand
Dimensions and weight:
- photo booth dimensions: 70x70x173cm,
- main body dimensions: 46x67x27cm,
- main body weight: ~21kg,
- lens height from the ground: 152cm,
- cassette with printer: ~21kg,
- stand weight: ~7kg,
- base weight: ~15kg,
- base dimensions: 70x70cm
Other features:
- programmable edge and stand LED lighting – multicolor digital LEDs with remote control,
- integrated silent cooling system,
- color: matte black/white with fine texture,
- construction based on welded aluminum frame and 2mm thick aluminum panels.
Available colors
Main body
Mobility and ease of use

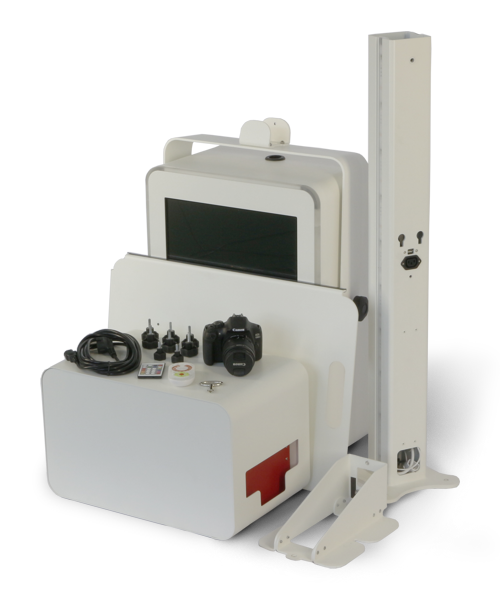

The construction of the booth consists of 4 parts, all lightweight (heaviest ~21kg with full gear), allowing anyone to carry it comfortably without effort.
Its compact size is also a big advantage – the main body measures only 46x27x67cm.
The booth can be packed together with accessories (extra media boxes, props, green screen) even into a small car.
In station wagons, the full setup fits in the trunk.

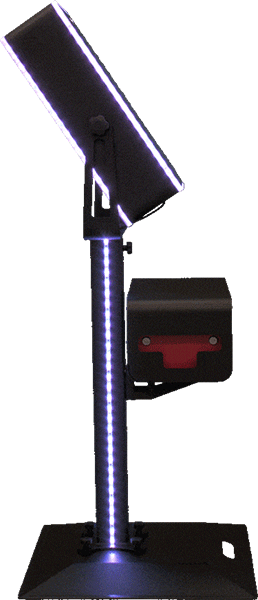

Tilt-adjustable main body
The device features a tilt-adjustable body. The camera angle can be changed quickly, allowing for fast framing of the photographed subjects.
This is especially helpful when switching between photographing children and adults.
No need for stools to properly frame smaller guests.

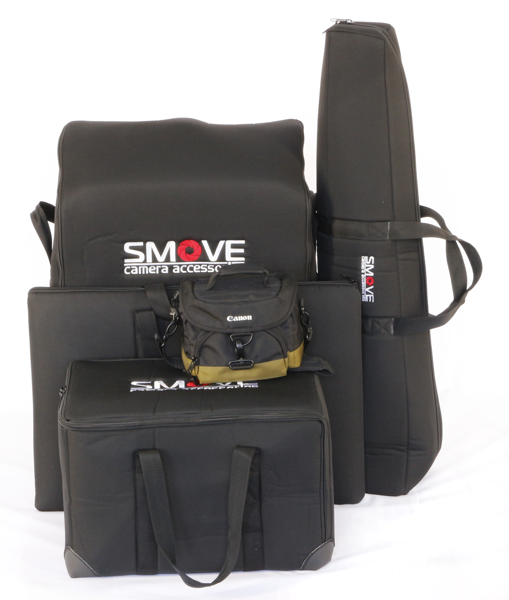

Transport bags
Easy media replacement

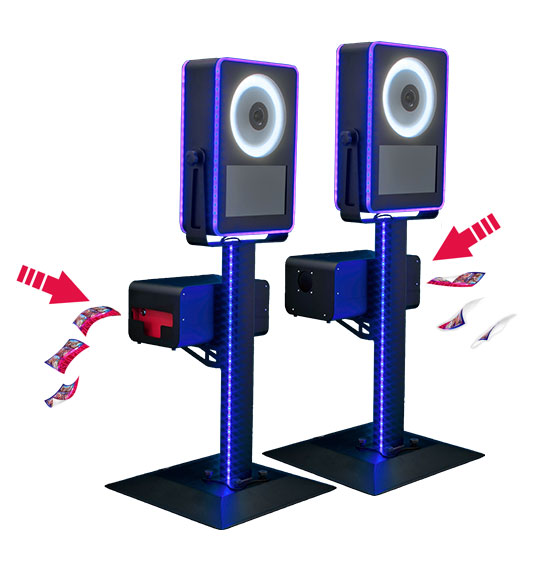

Dual-sided photo output
The cassette with printer can be mounted so the photo exit is on either the left or right side of the booth (interchangeably), useful in tight spaces.
Side output prevents guests retrieving photos from blocking the next session – unlike front exits where people stop to view their printout.
To avoid damage to the external tray (usually supplied with the printer), we’ve implemented an internal metal tray – durable, aesthetic, and capacious. Nothing sticks out from the sides or front, so there’s no risk of accidental damage.

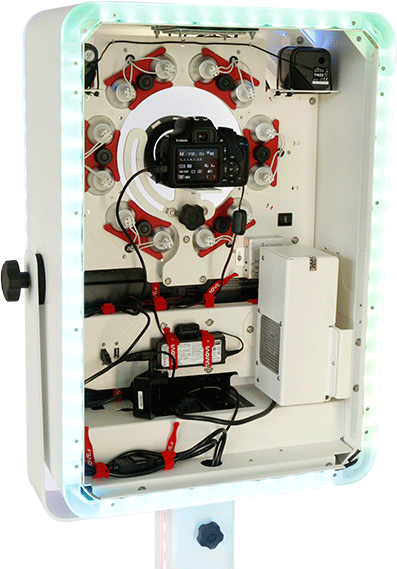

Quick camera orientation change
The camera can be rotated to portrait orientation for tight vertical framing – ideal for ID-style or full-body shots.

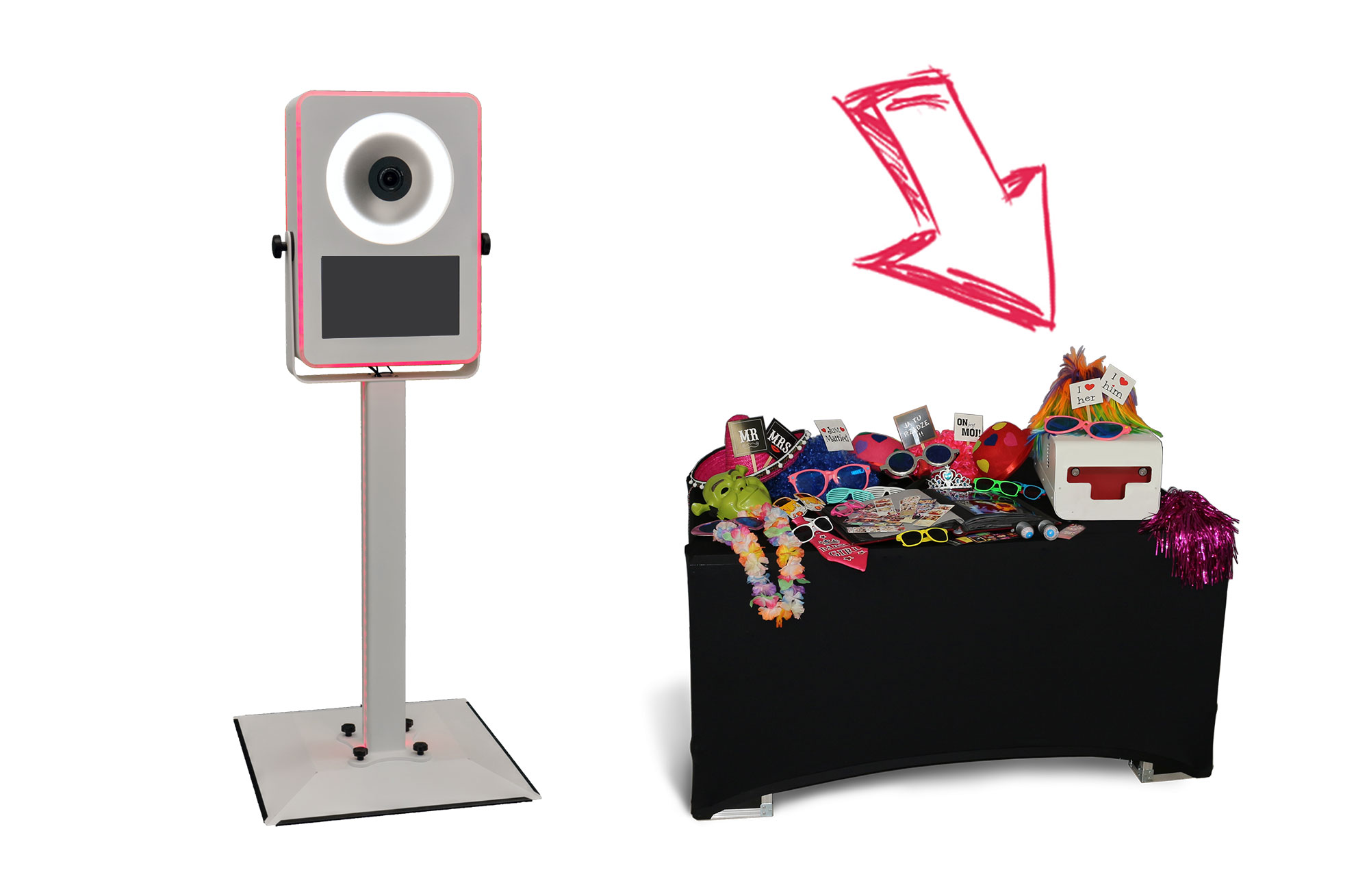

Detachable printer cassette
The printer cassette can be detached from the booth’s stand and placed anywhere within USB cable range (e.g., up to 5m)

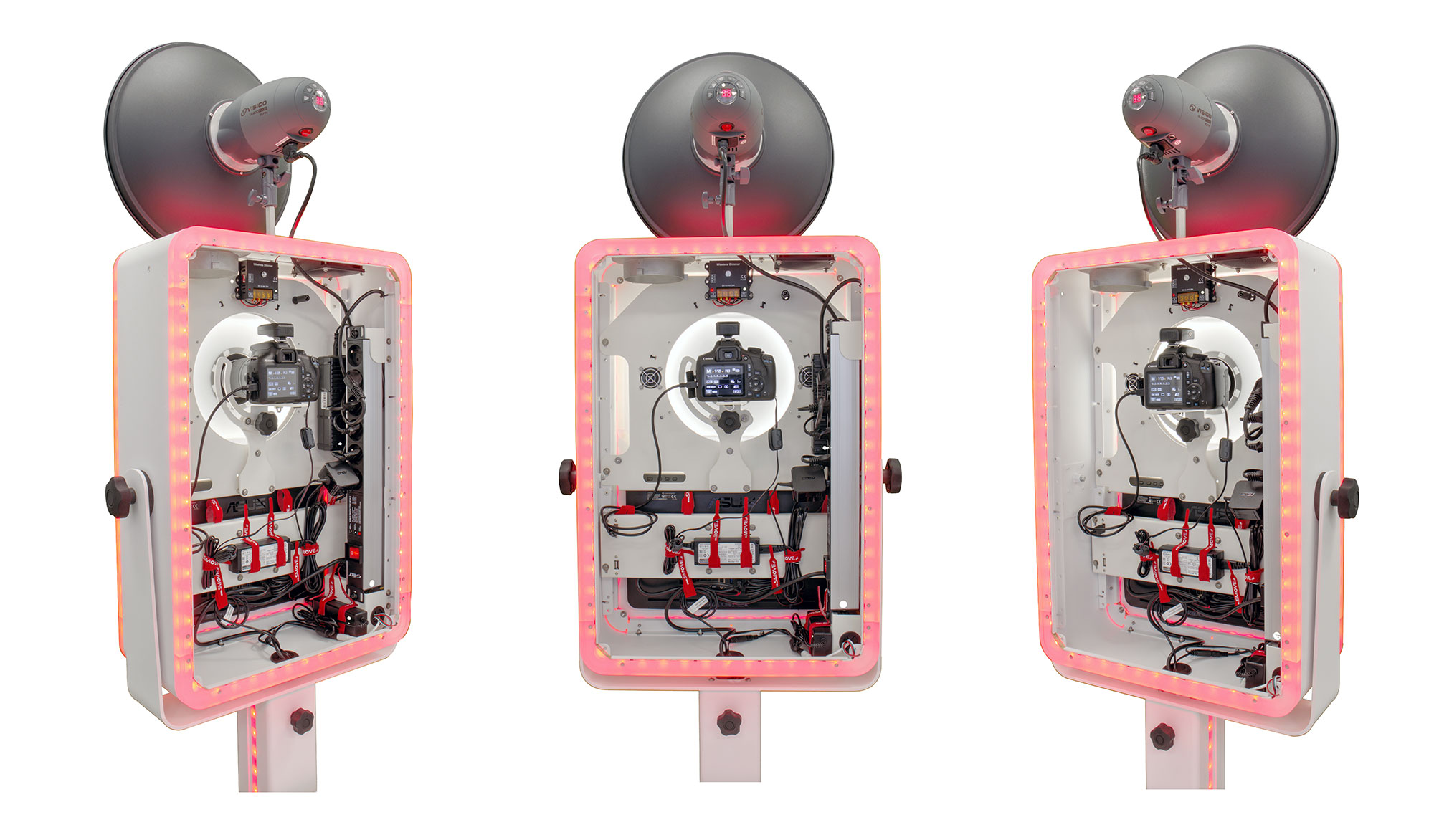

Electrical installation
The booth features a fully integrated power system, based on a main power module located in the upper part of the device.
The integrated system offers maximum convenience and safety – no cable mess, no multiple chargers or exposed sockets – the setup is ergonomic and super fast.
Once assembled, you just connect power to the main unit, plug in the printer’s power and USB cables, the camera – and you're ready to go.
