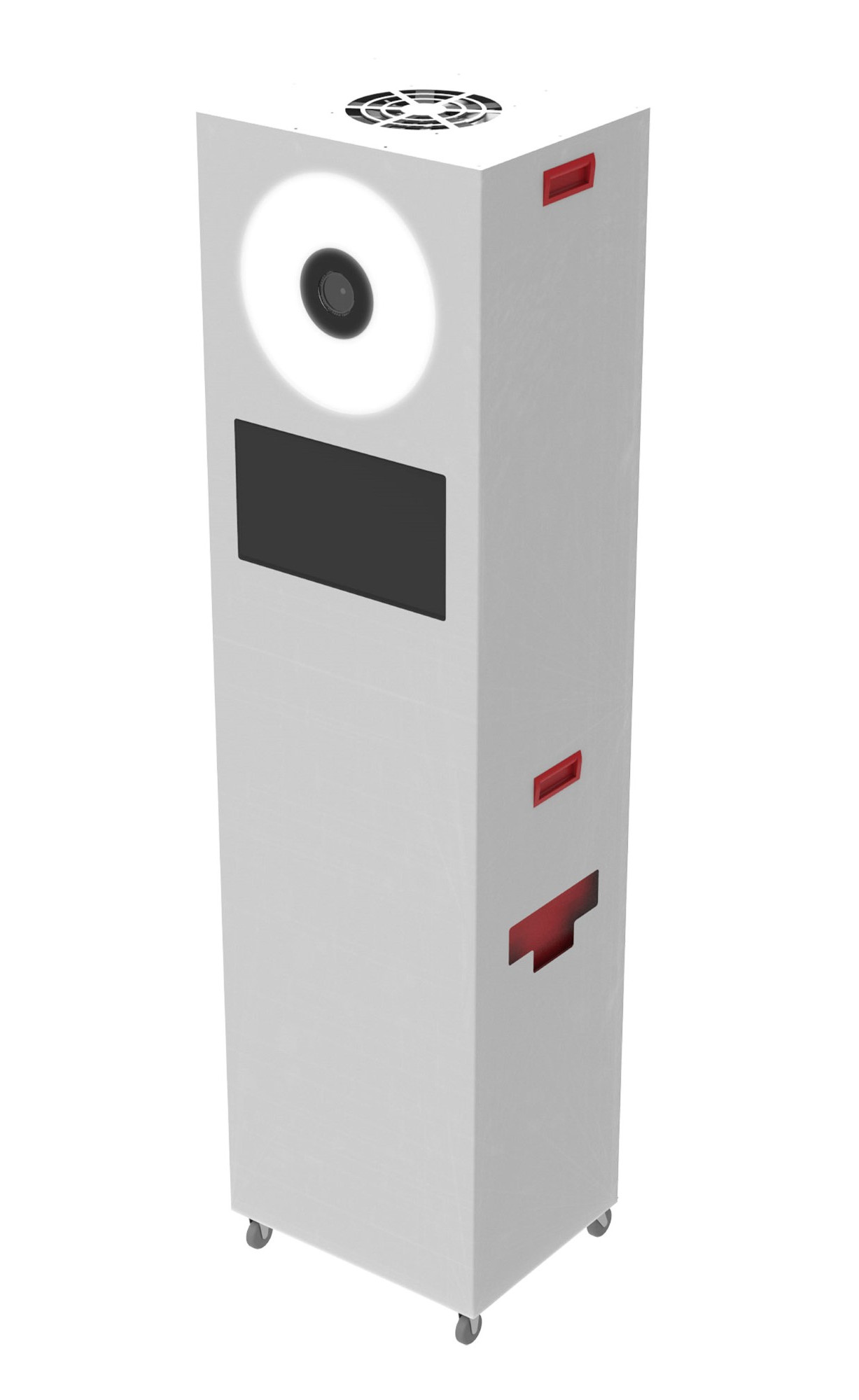

A classic solution for large-scale events. The device offers extensive hardware configuration options (UV lamp, payment modules, custom branding wrap).
Standard equipment:
- LED ring light – 4500lm brightness with remote intensity adjustment,
- ASUS A41GAT All-In-One computer with 16" touchscreen,
- CANON EOS 2000D camera with 18-55mm lens, 8GB memory card, and Canon AC adapter,
- Mitsubishi CP-M1E dye-sublimation printer with supplies for 750 prints,
- Photo booth software including user interface pack and print layout templates.
Dimensions and weight:
- Photo booth dimensions: 46Ă—173Ă—38 cm,
- Single segment dimensions: 46Ă—86Ă—38 cm (without wheels),
- Camera lens height from the ground: 158 cm,
- Upper unit weight: ~19 kg,
- Lower unit weight: ~18 kg.
Additional features:
- Slide-out printer drawer,
- Internal photo tray,
- Transport wheels with locking mechanism (rotation and movement),
- Integrated, silent cooling system,
- Color: black or white matte finish with subtle texture,
- Welded aluminum frame with 2 mm thick aluminum panel casing.

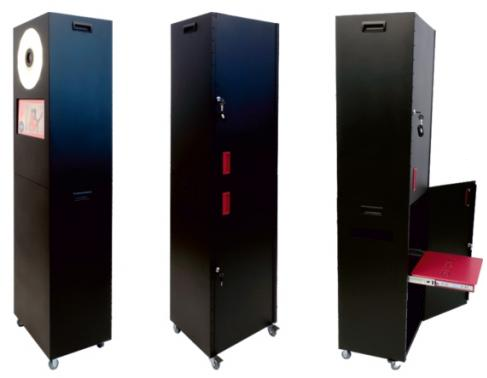

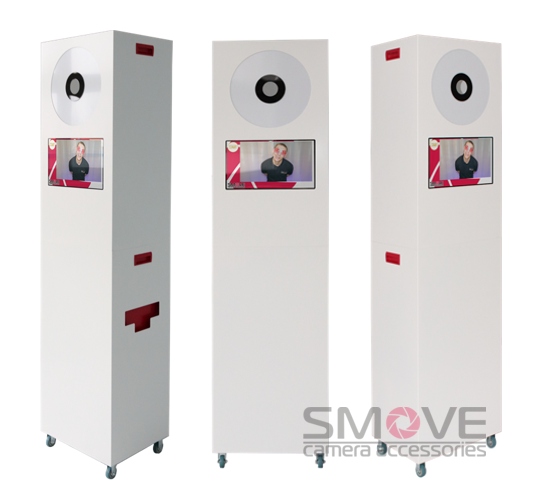

The photo booth consists of two segments. This makes it easy to transport, even in smaller cars.
The booth is built using a welded aluminum frame and 2 mm aluminum panels – ensuring maximum durability during years of intensive use.
The side walls and front are made from a single sheet of aluminum – laser-cut and bent with CNC edge benders. This monolithic construction improves durability and aesthetics – no fragile, visible seams or joints on the edges.
Competing frames made of bolted aluminum profiles or furniture boards will eventually loosen and lose rigidity, requiring regular servicing.
Other metal constructions may also exist on the market, but often without an internal load-bearing frame and using only 1 mm thick panels – which results in poor durability.
Aluminum has natural heat dissipation properties – it's the same reason radiators are made of aluminum. Materials like plexiglass or furniture boards are poor thermal conductors, and without exhaust fans, they cause heat buildup inside the photo booth. This leads to overheating of internal components – camera, printer, and computer.
Except for the printer, our booth has no major heat sources. The computer is a modern unit with efficient cooling, and the photo booth light uses 12V LED tubes that generate minimal heat (you can touch them even after hours of use). Many other booths use CFL bulbs, which produce significant heat and have a weaker light output.
Mobility and ease of use
The booth is lightweight (~18 kg per segment with components), allowing anyone to move it with ease. Comfortable built-in handles on both parts allow for easy lifting – even without protective cases.
The compact dimensions (46×86×38 cm per segment) make the device ideal for transport – even if you don’t have a van.
The device can be packed with all accessories (printer media, props, green screen) into a small car. In wagons, it fits entirely in the trunk.
Fiat Cinquecento – micro vehicle class
Loaded with 2 boxes of media, a full set of props, and a green screen – and still fits 2 people comfortably.
Opel Astra F – compact sedan class
Loaded with 2 boxes of media, a full set of props, and a green screen – still comfortably fits 3 passengers.
Toyota Avensis – station wagon class
Loaded with 2 boxes of media, a full set of props, and a green screen – all packed in the trunk, still seats 5 passengers comfortably.

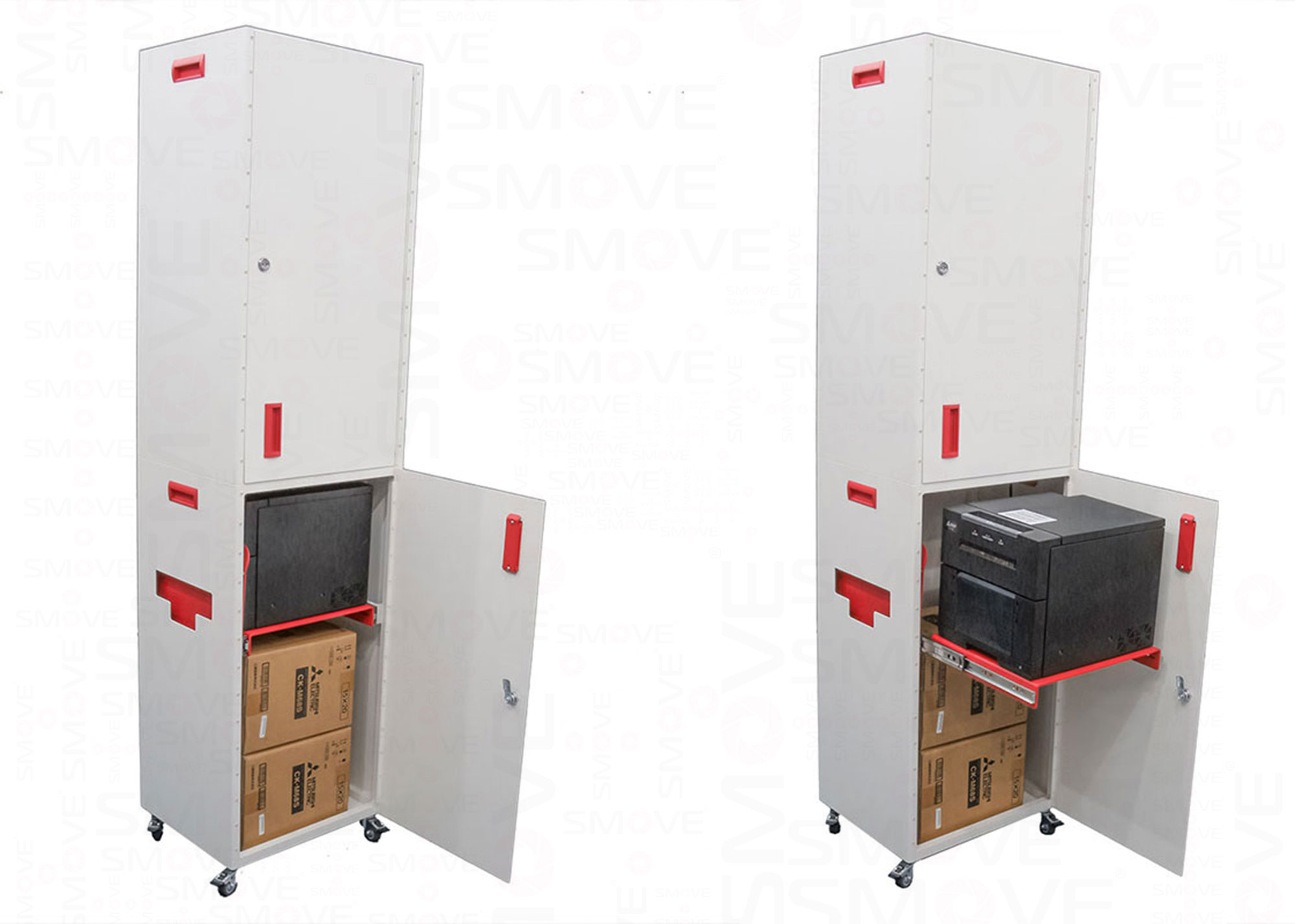

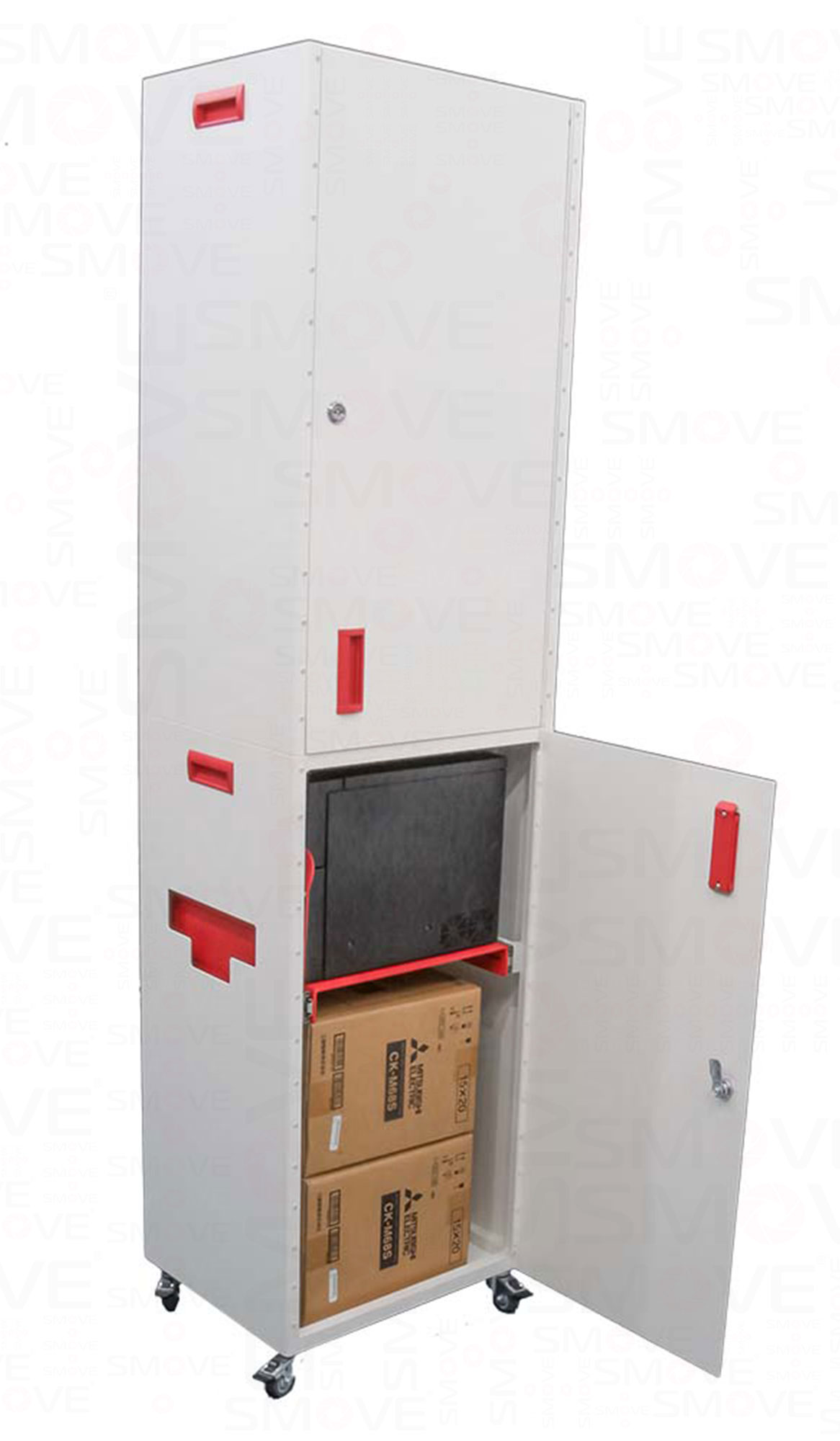

Lower compartment
The lower box provides storage space for printer media, camera bag, or prop transport.

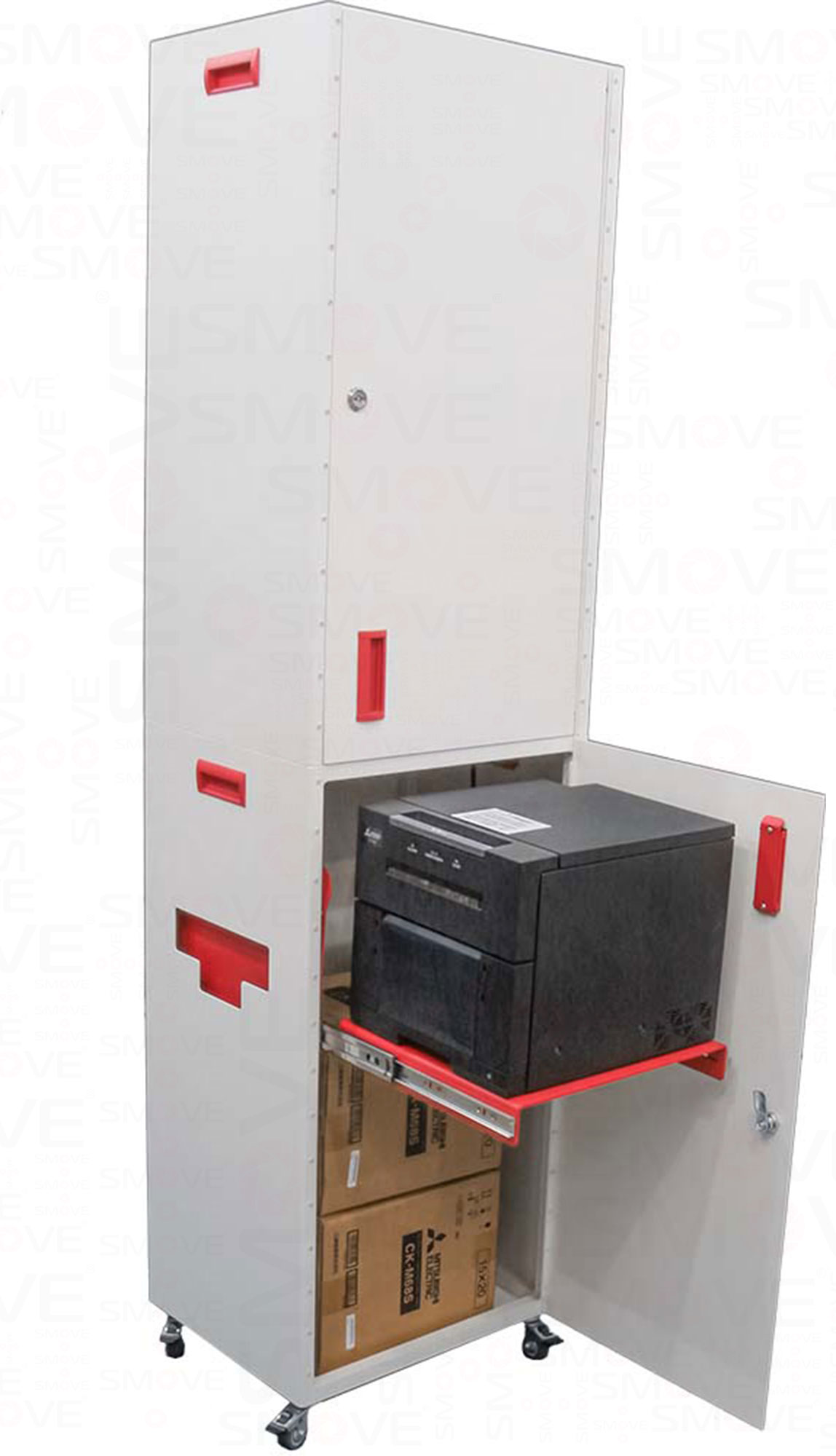

A very practical feature is the printer drawer. Most photo booths on the market use dye-sublimation printers, which are heavy (e.g. Mitsubishi CP-M1E weighs 17.5 kg with media) and require media replacement only when powered on.

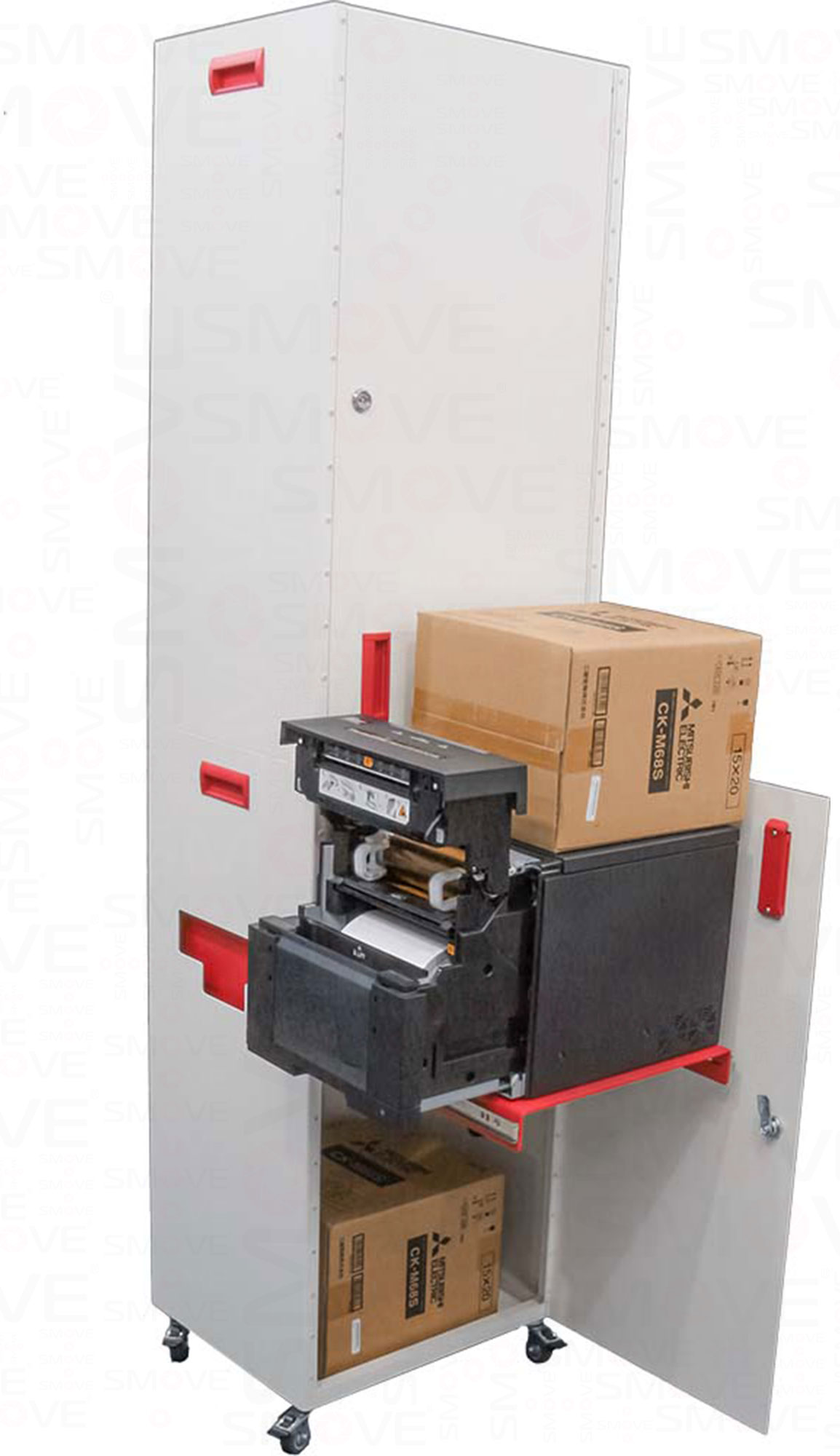

The drawer allows quick media replacement – even during an event, without interrupting the session. In models without a drawer, replacing paper requires stopping the session >> removing external tray >> unplugging printer >> pulling it out >> powering back on >> loading media >> waiting for calibration >> unplugging again >> reinserting printer >> reconnecting power >> reinstalling tray >> done...
Watch how easy it is to replace the printer media

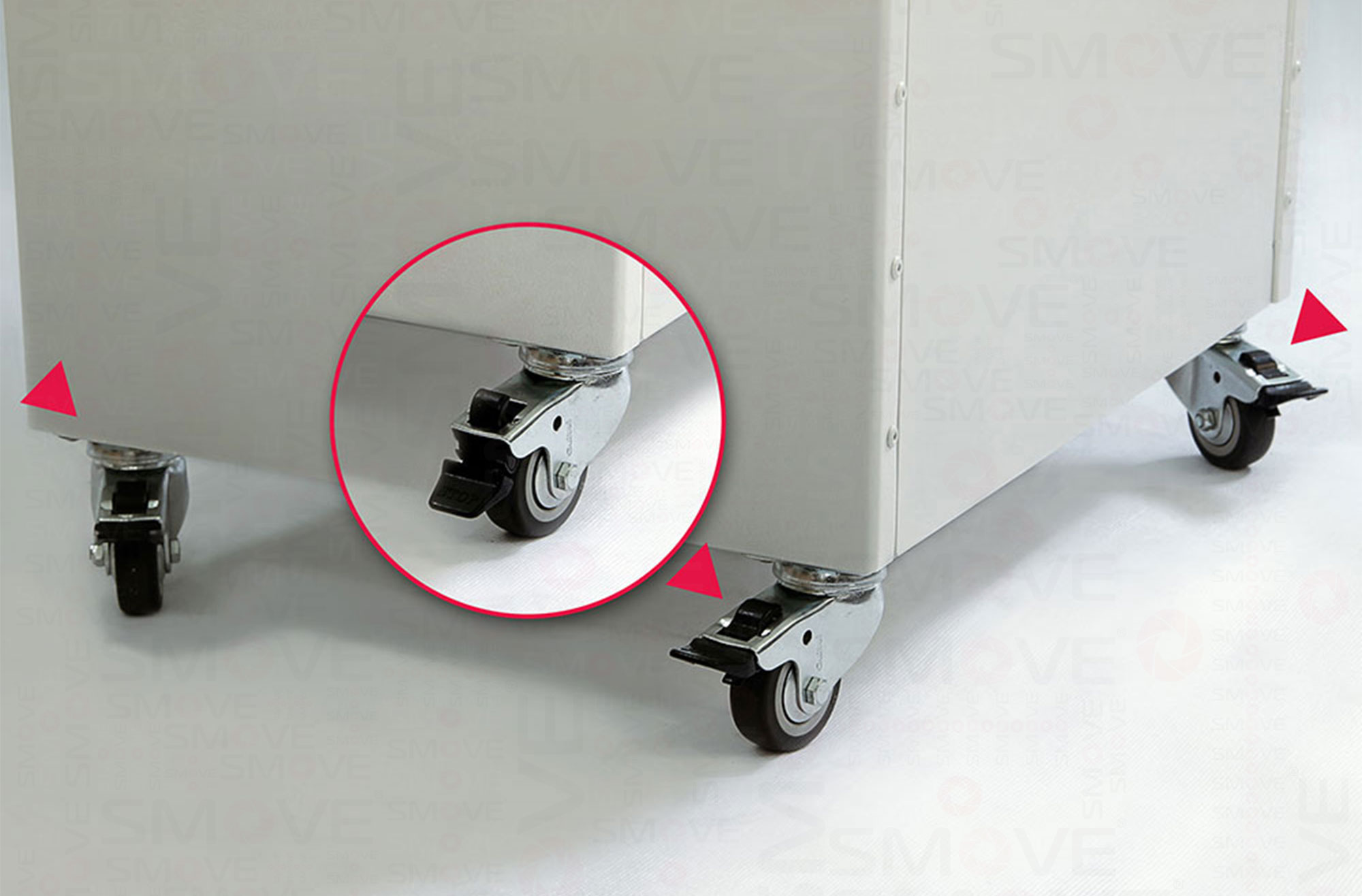

Wheels
The booth's wheels are equipped with special locks that prevent rotation and movement.

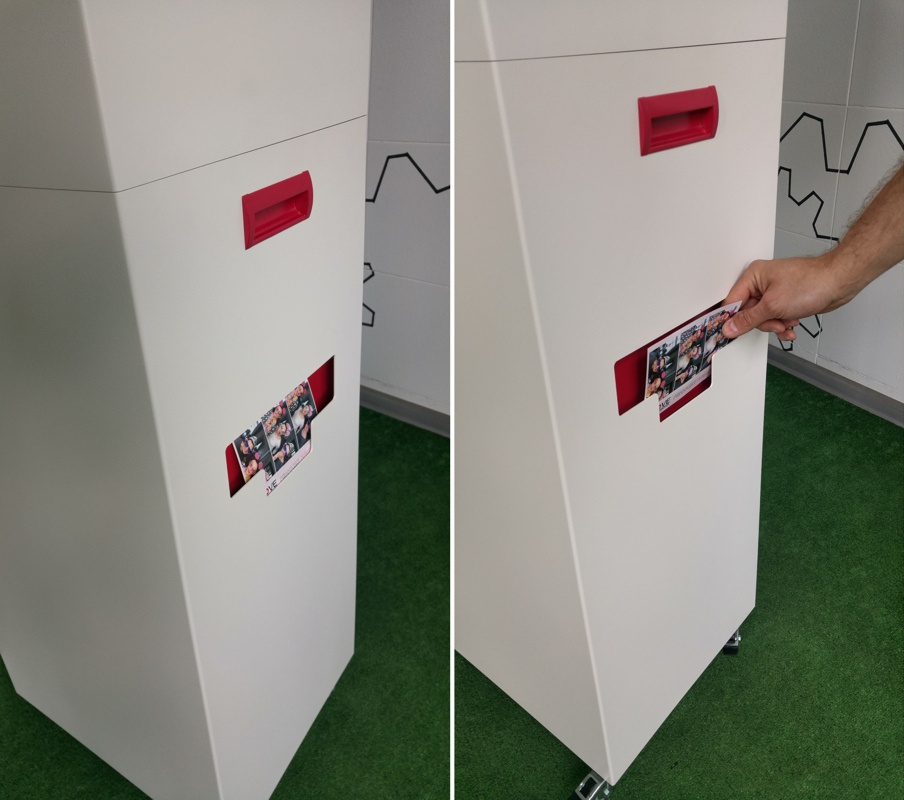

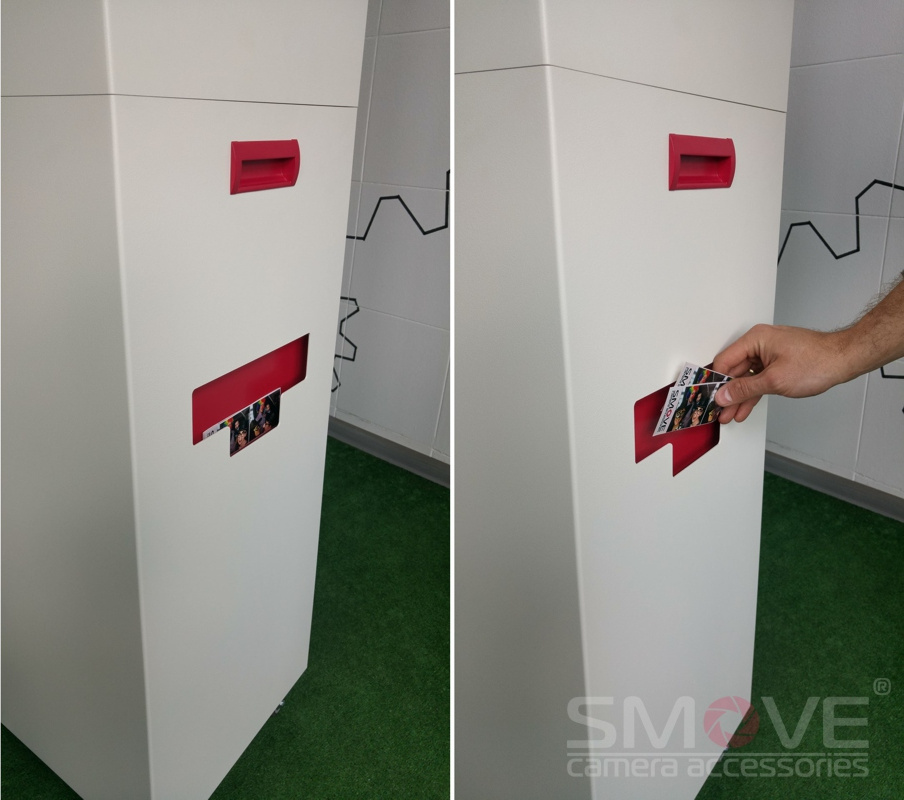

Internal photo tray
To avoid damaging the external photo tray (included with the printer), an internal metal tray is used. It’s convenient, elegant, and holds many photos. It doesn't stick out, so there’s no risk of someone accidentally bumping or breaking it.
The outlet is located on the side (from the front: right-hand side). This allows guests to collect photos without interrupting the next session – unlike front-facing trays, where people tend to linger while viewing prints.
Additionally, the side-mounted printer position allows for quick paper replacement – no lifting or rotating the printer to open the cover.

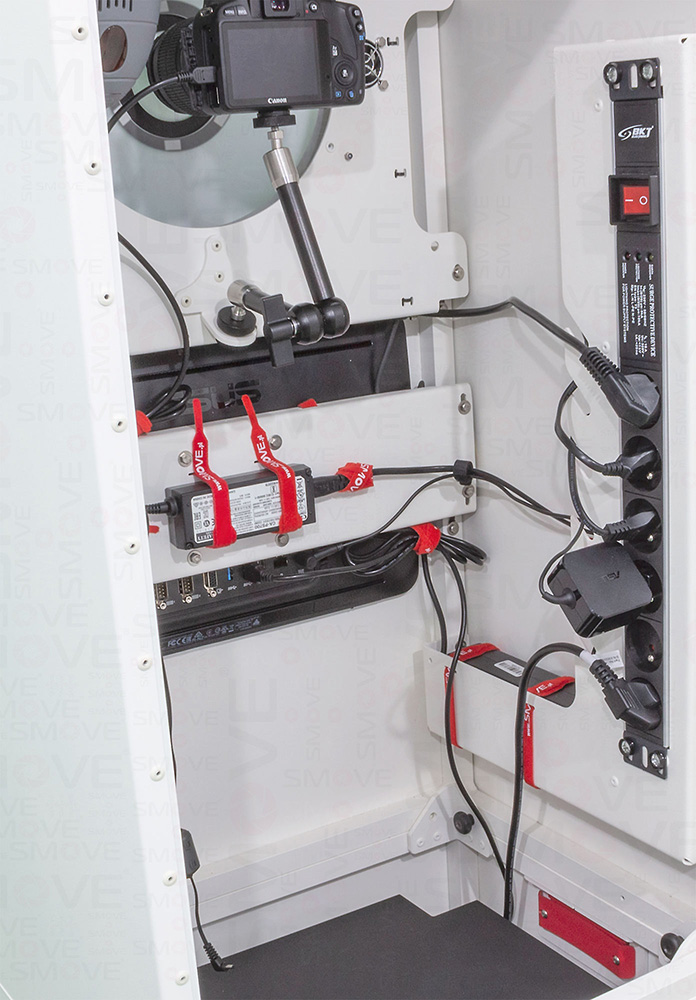

Professional electrical installation
The booth features a fully integrated power system based on a central module located in the top section.
Thanks to feedback from users, we eliminated the external power socket on the side of the booth. Power is delivered from underneath the device – no external ports mean no risk of accidental unplugging or tripping during operation.
Inside the module is a complete electrical panel with surge protection, RCDs, fuses, a 12V power supply (for the LED lamp, coin acceptor, cooling), and the original Canon AC adapter (we do not use cheap alternatives).
Our integrated solution
“Solution” from competitors
Flash lighting
A flash lamp is available as an optional feature. It’s especially useful in venues where continuous light is not allowed or desired – such as dark clubs or when you want to apply light painting effects.
The SMOVE FBOX PRO supports four different flash configurations:

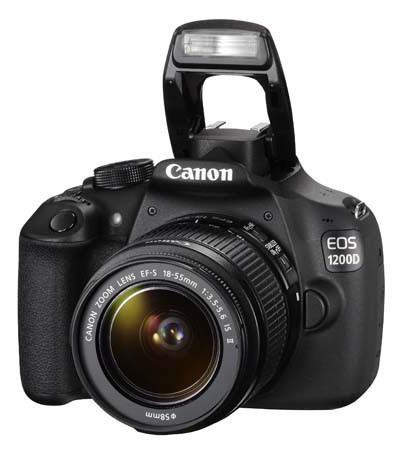

1. The simplest method – just raise the built-in flash on the camera. It has comparable power to E27 socket flash bulbs.
2. Our custom ring flash – featuring a 16 cm diameter tube with max 600Ws power. The flash generator provides up to 200Ws for headroom and extended lamp life.

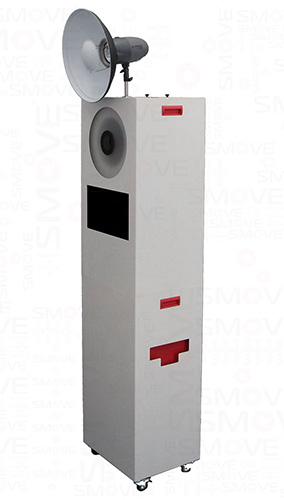

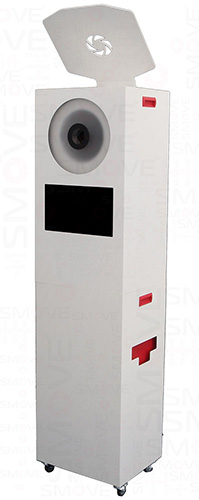

3. External studio flash with beauty dish – mounted on the top plate of the photo booth.

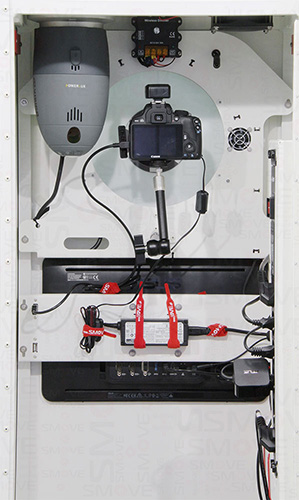

4. Flash lamp integrated inside the booth body.

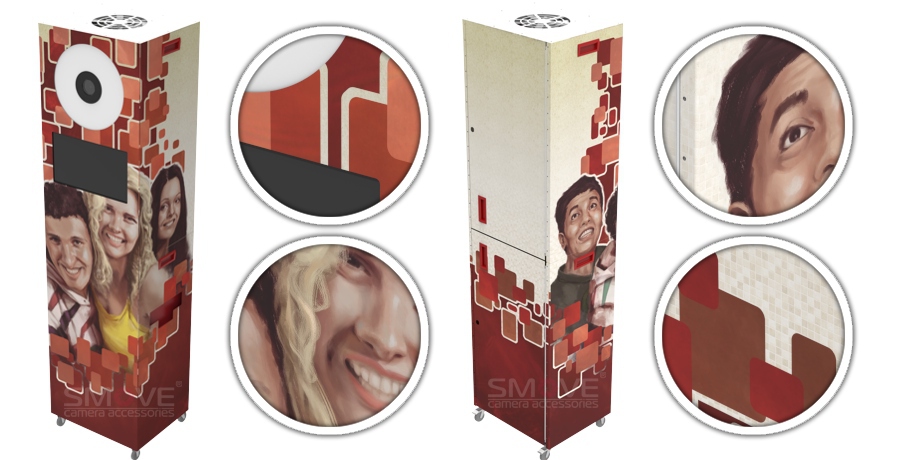

Custom branding wrap
A great way to personalize your booth's appearance is with a branded vinyl wrap. You can order this as an optional upgrade. The wrap is made from thick vinyl and protected with a transparent laminate. You can request a fully custom design or choose from our free templates (we’ll apply your logo, slogan, and contact info).

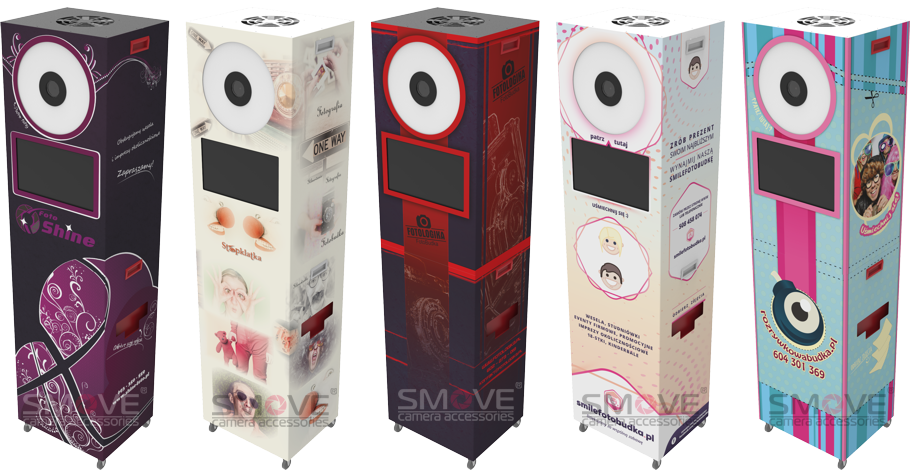

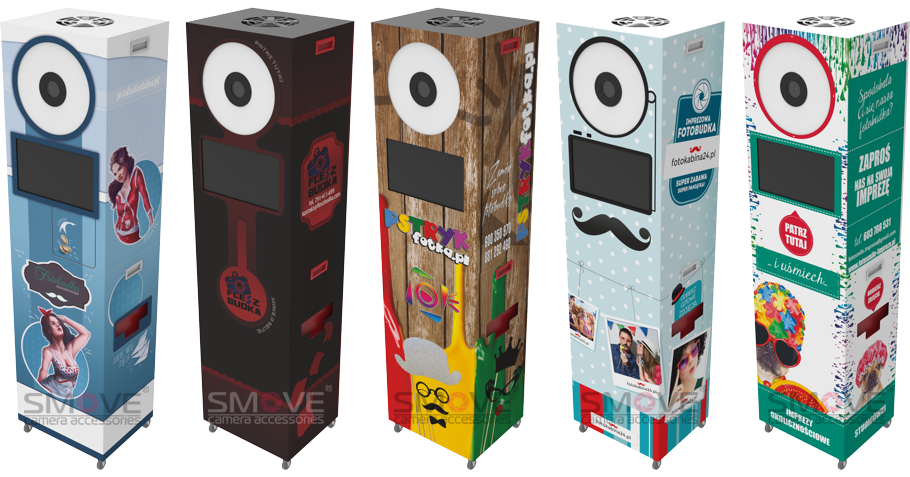

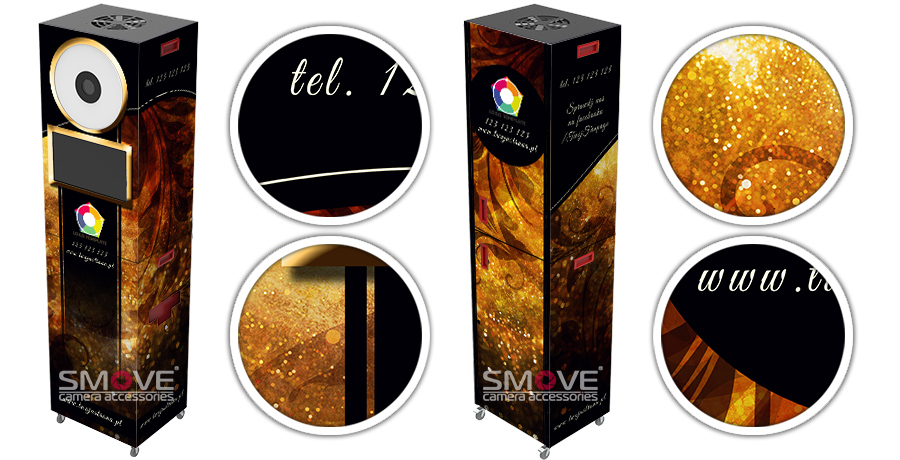

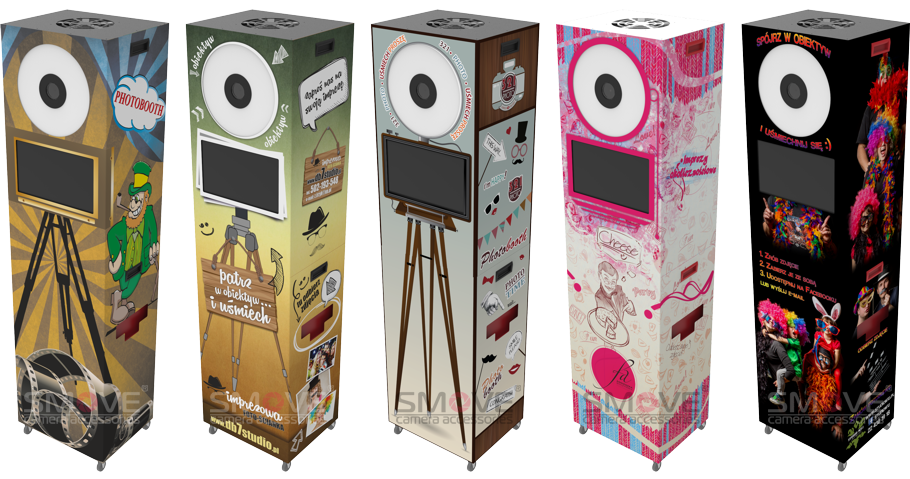

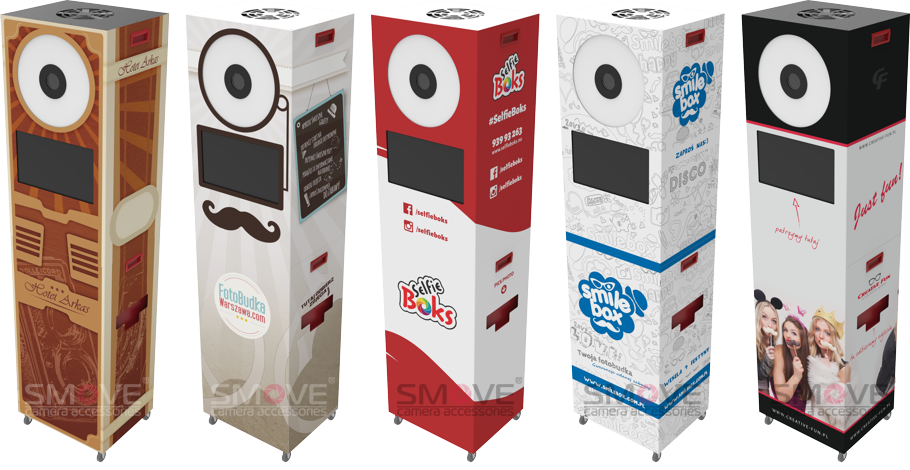

Example templates
If you choose this option, your template will be customized – we’ll add your branding, slogan, and contact details (email, phone, etc.).

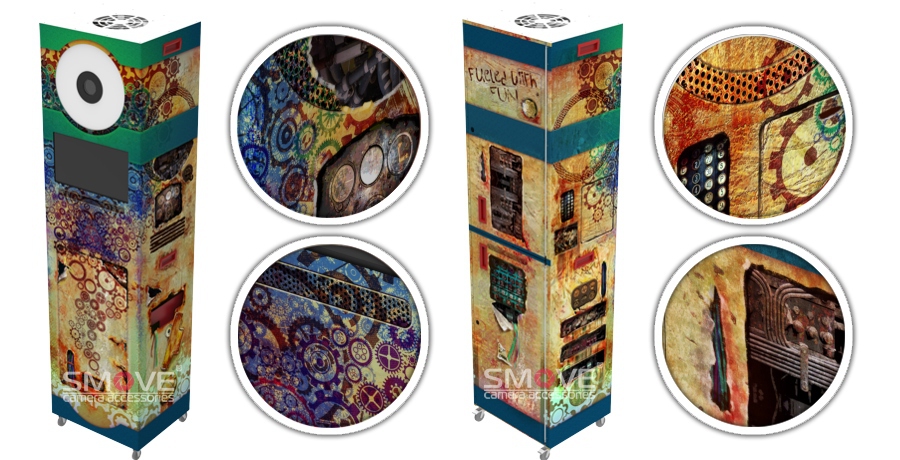

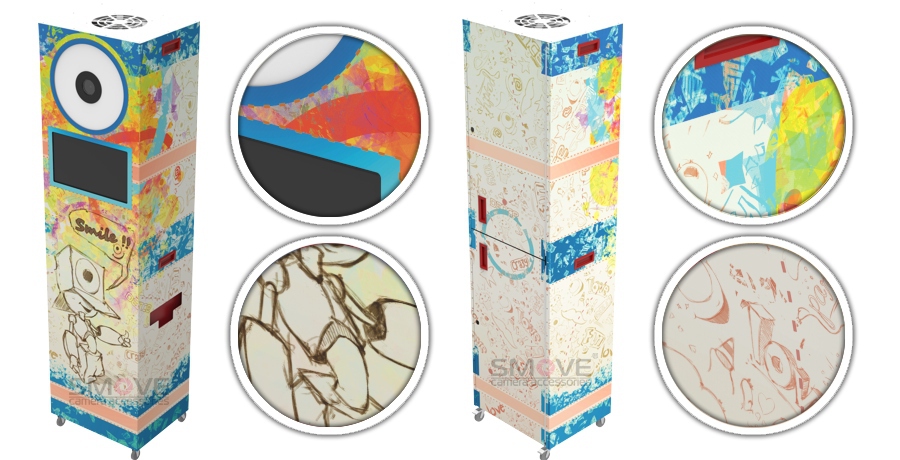

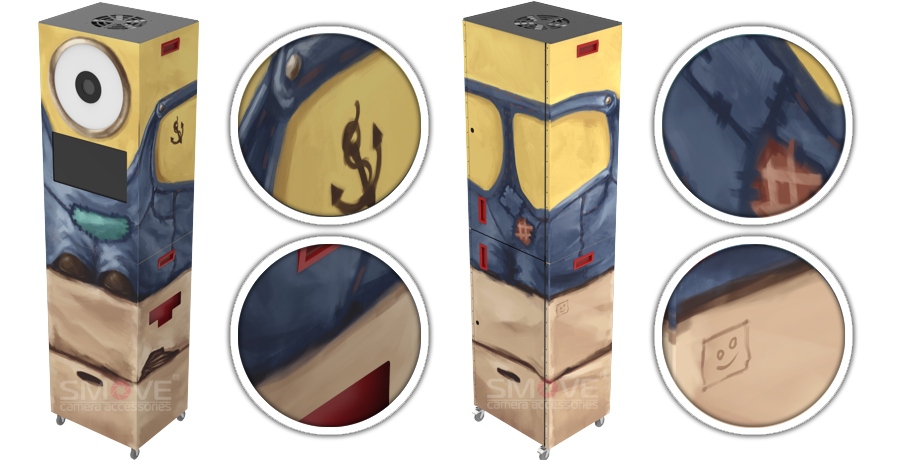

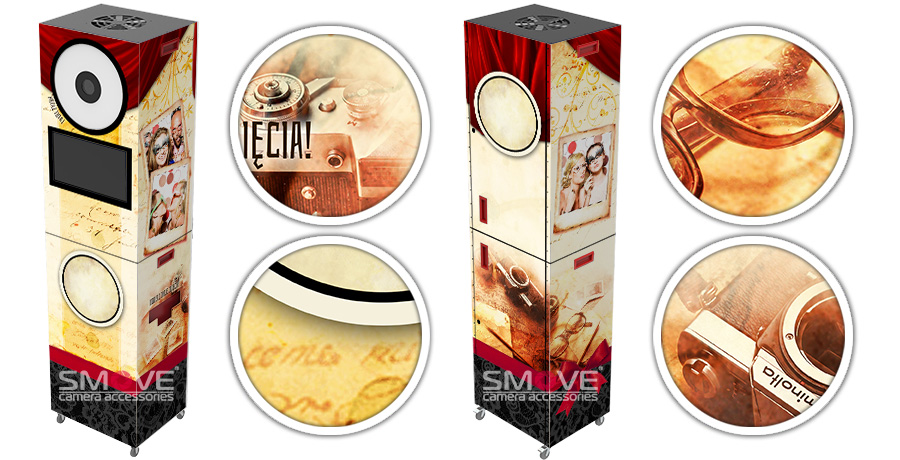

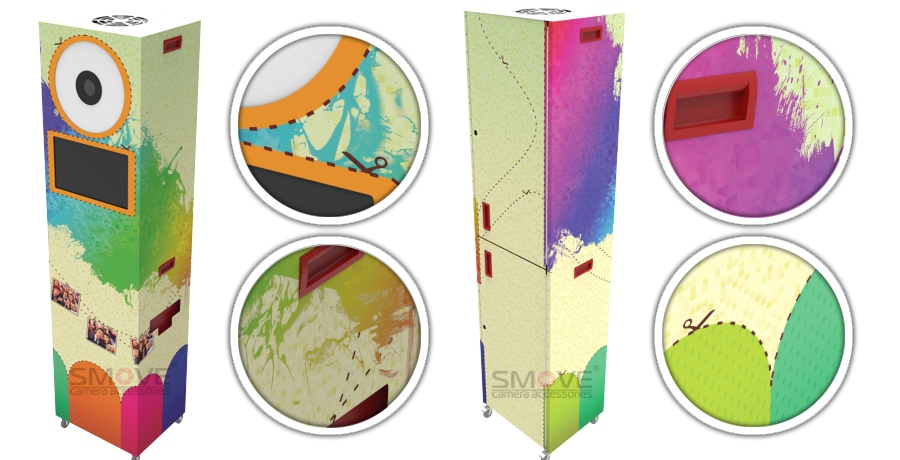

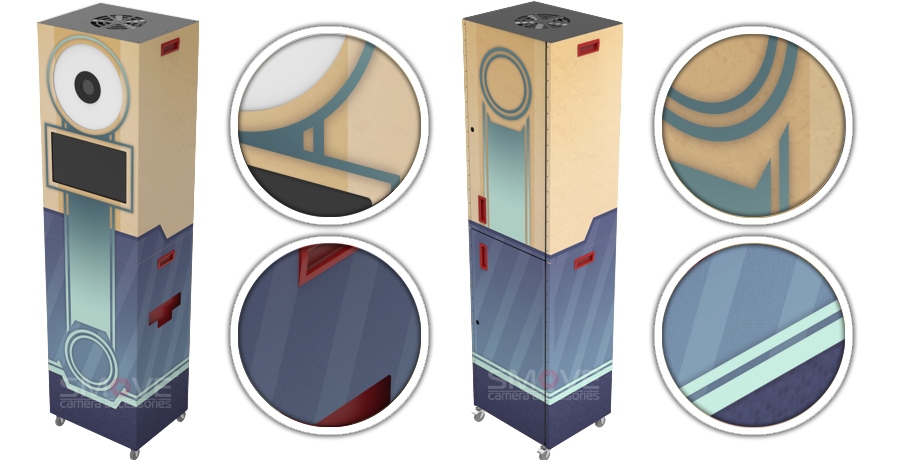

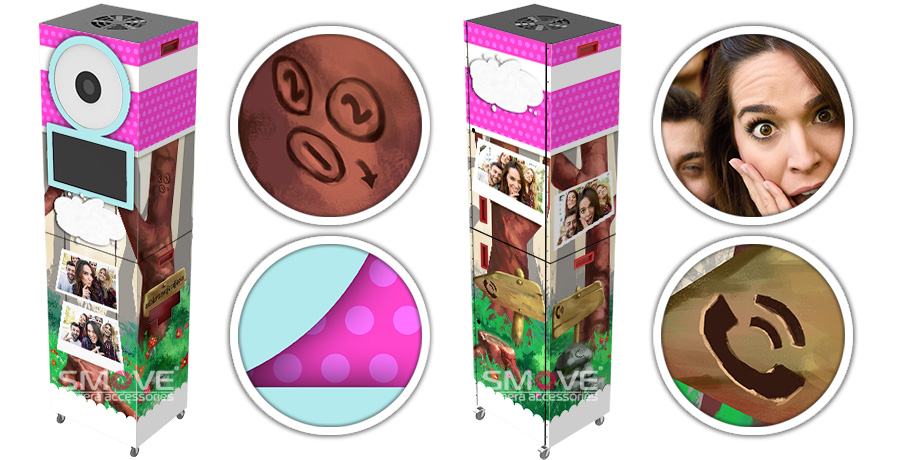

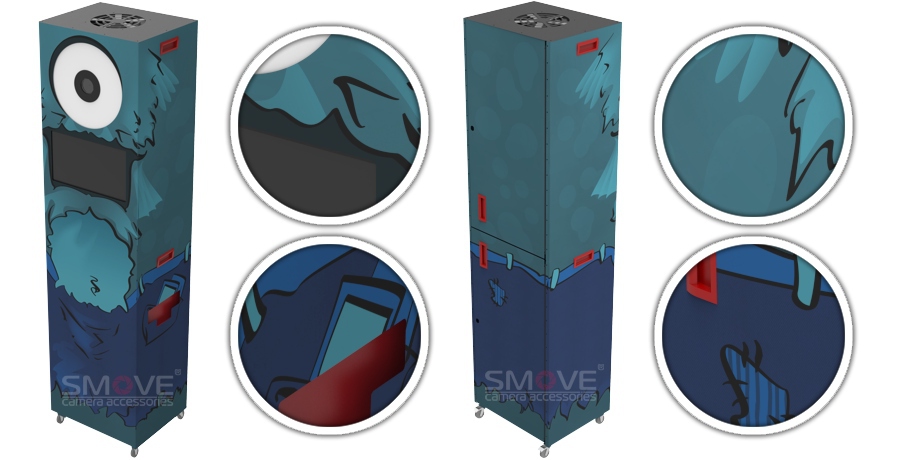

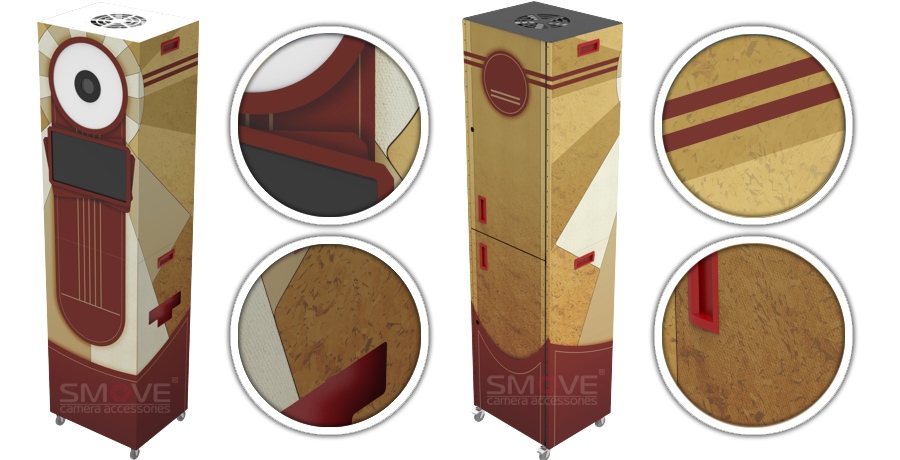

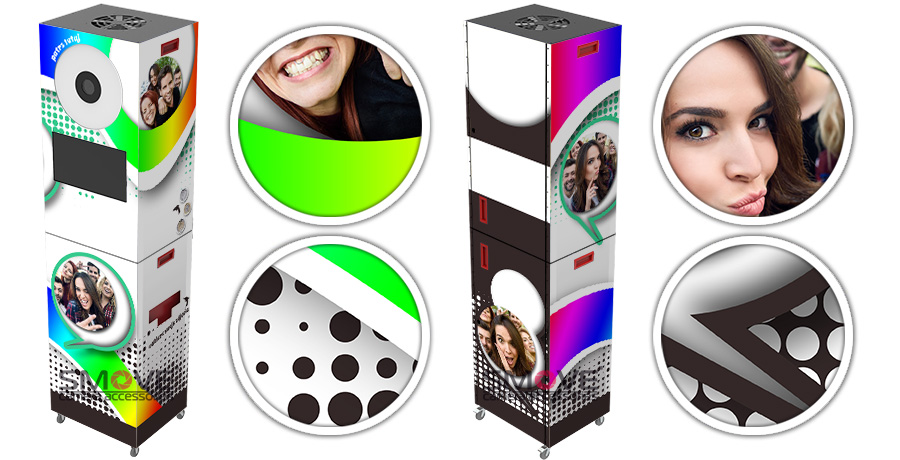

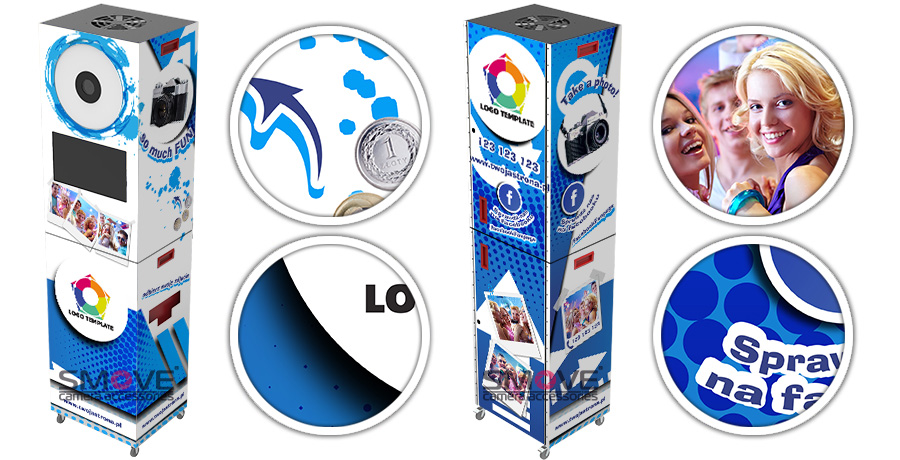

Examples of custom wraps * Designs are not for resale.
